These images are visualisations I created in 3D Vectorworks to match to a painted concept and maquette already developed and approved by Wes with our maquette building team. For most sets in the film a 1:1 scale model was built out of white car and paper, and a test shoot set up for the camera move to sign of key frame positions before the set was final drawn up and issued to construction.

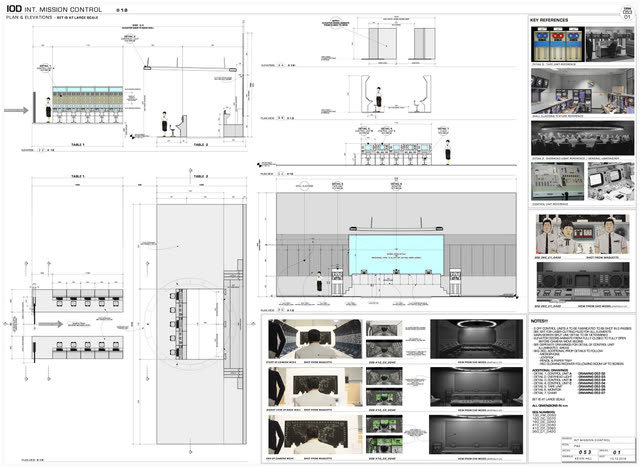

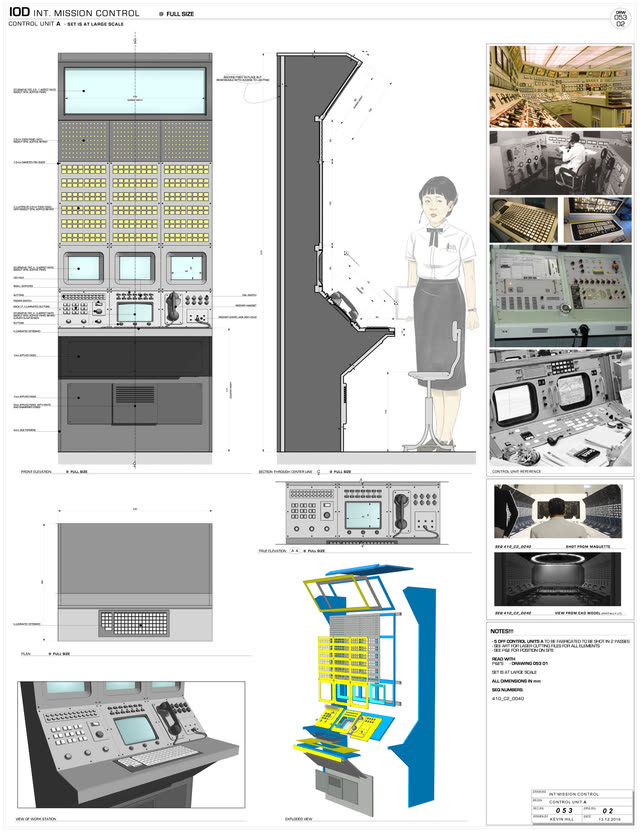

I built these visualisations to accompany the maquette and the 3D model I took all construction drawings including lasercutting files for all the wall panelling and work stations that were built up in layers of laser cut acrylic, as you can see in the drawing below.
